Homeowner/Landowner Riders
R 316TX
$11,499.00Rec. retail price incl. GST SKU: 970542710- Power/fuel typePetrol
- Cutting width, min94 cm
Product description

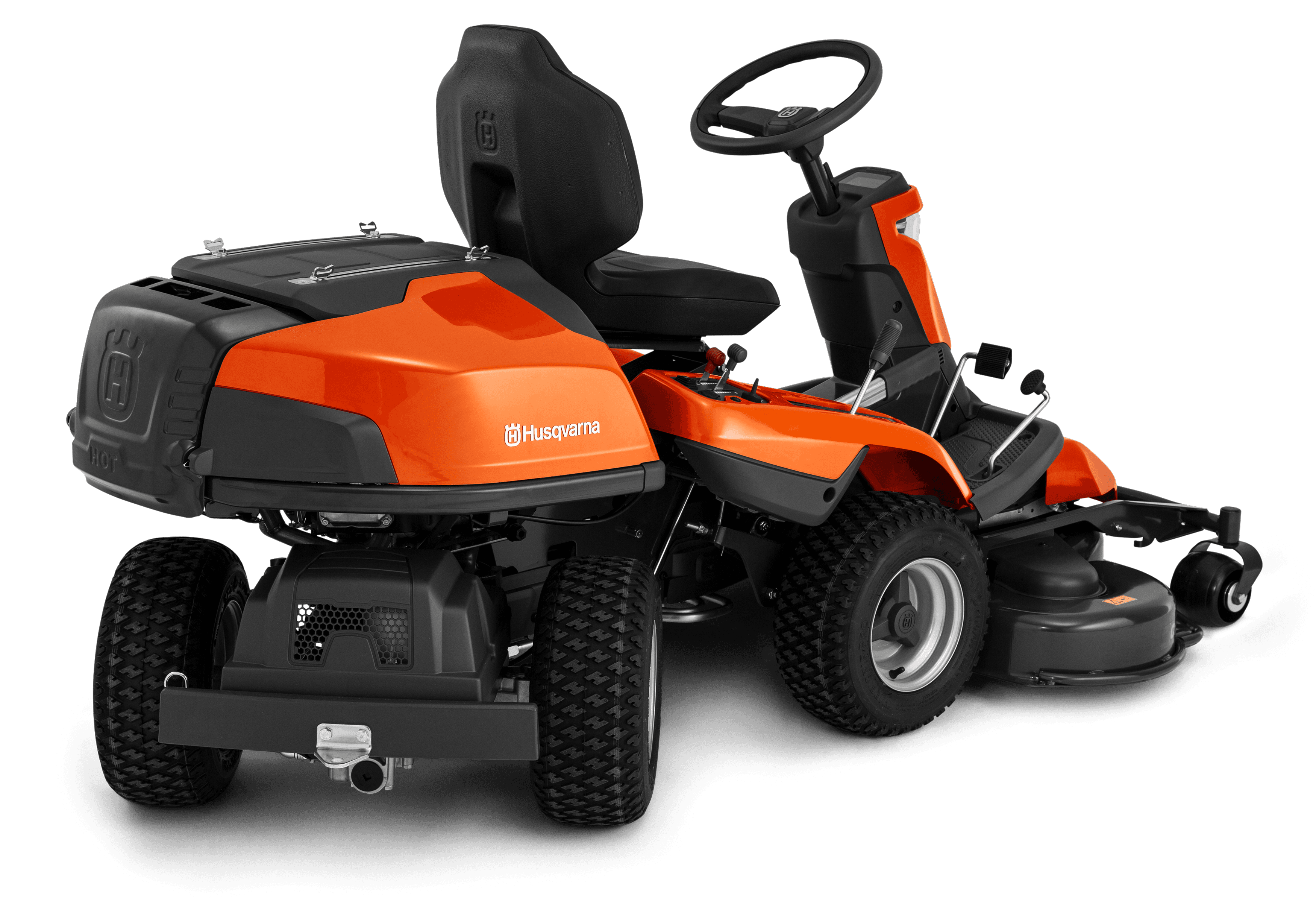

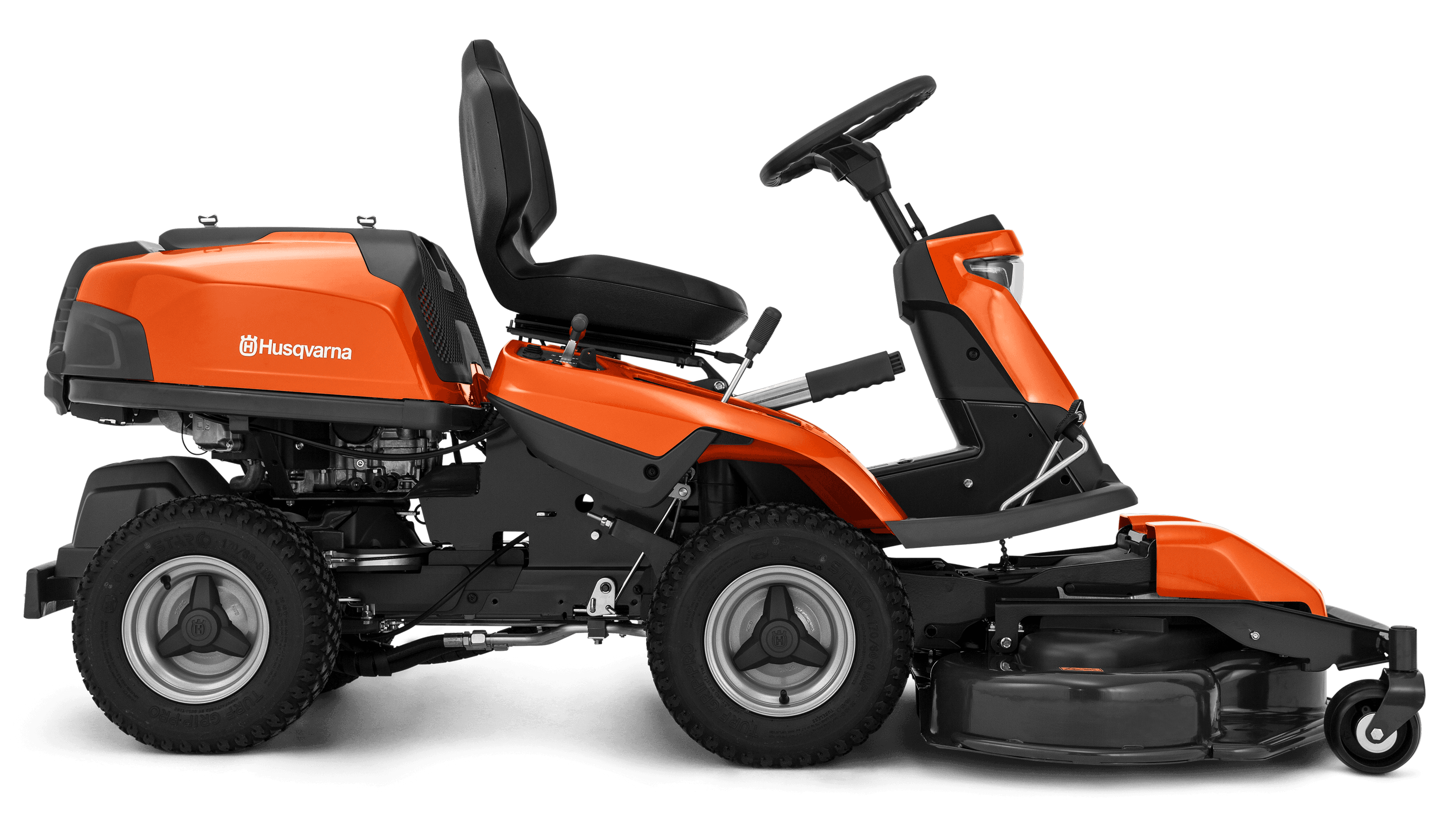

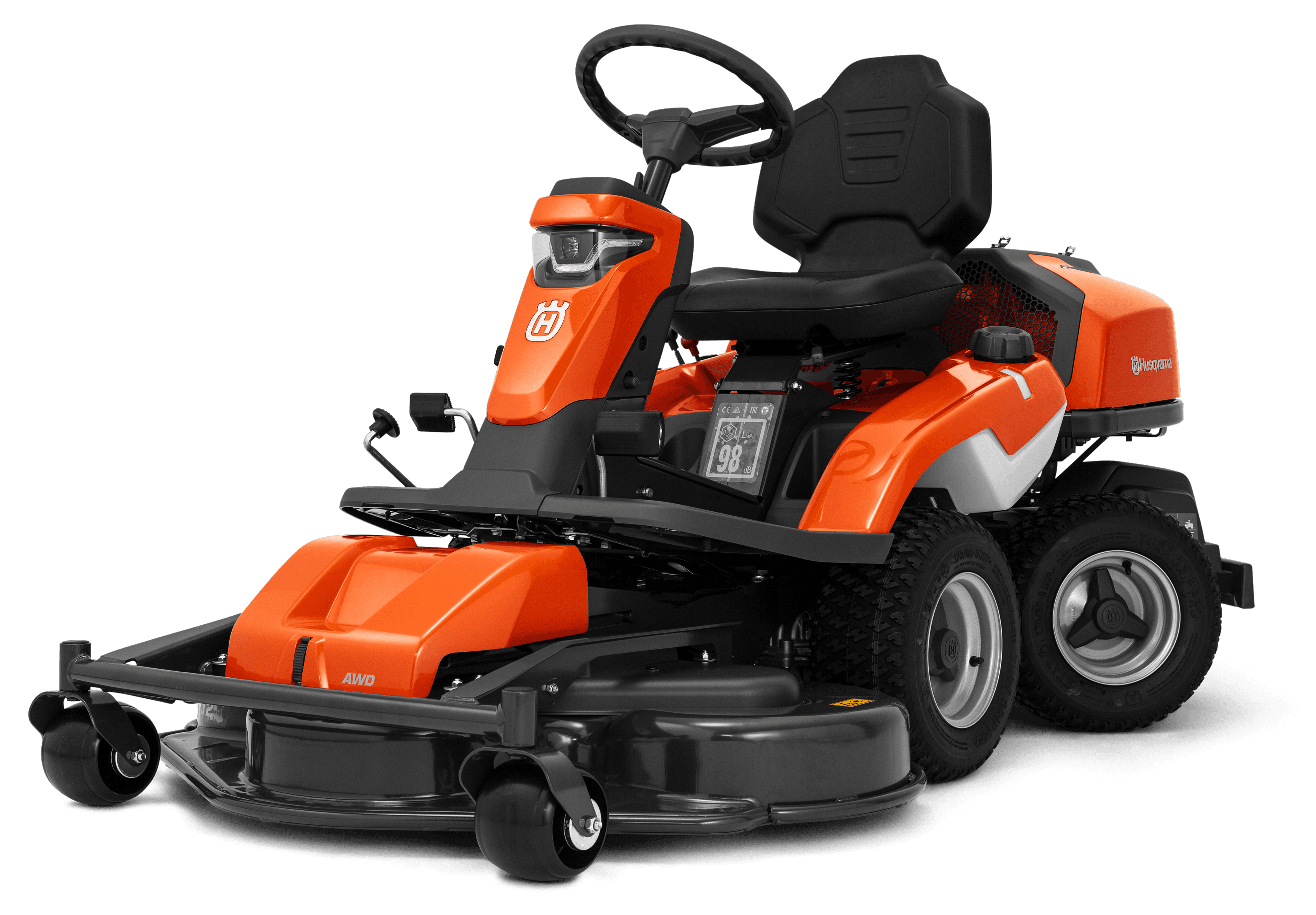

When taking on challenging lawns, you need a high-performance ride-on lawn mower with a wide range of accessories available. Husqvarna R 316TX comes with a V-twin engine and 103cm combi cutting deck with the option of first class BioClip® mulching or rear ejection. The articulated steering makes tight turns smooth, while LED headlights provide greater visibility. Ready for Husqvarna Connect with Bluetooth®.


Product Information
Features (28)

Adjustable steering wheel
Height adjustable steering wheel

Floating cutting deck
Floating cutting deck for reduced risk of scalping

Hour meter with service minder
Hour meter with service minder

Pivoting rear axle
Pivoting rear axle for maximum traction

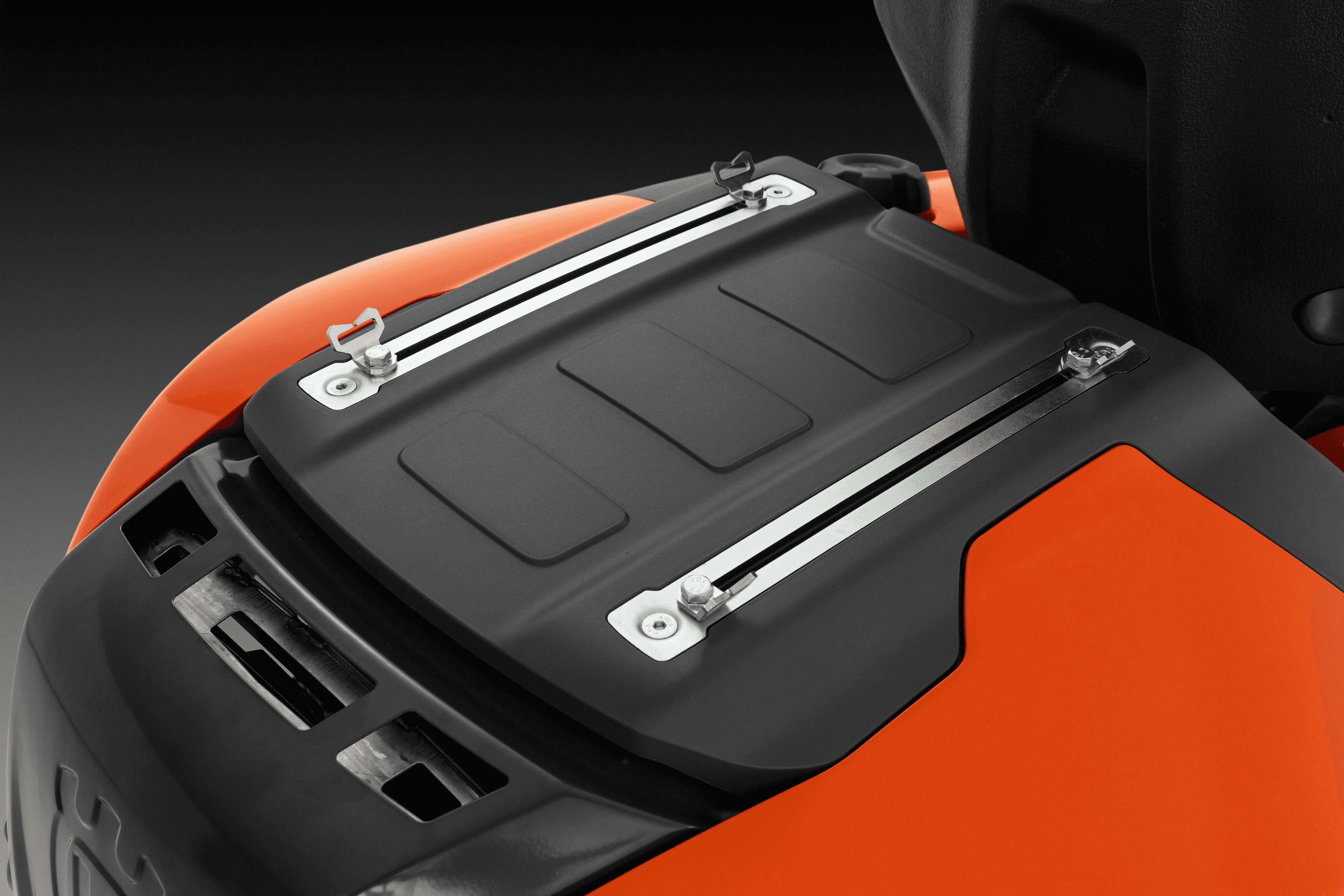

Attachment frame
Attachment frame for maximum versatility

16 inch wheels
Equally sized wheels for a comfortable ride

HMI Display
HMI Display for real time updates on your Rider's status

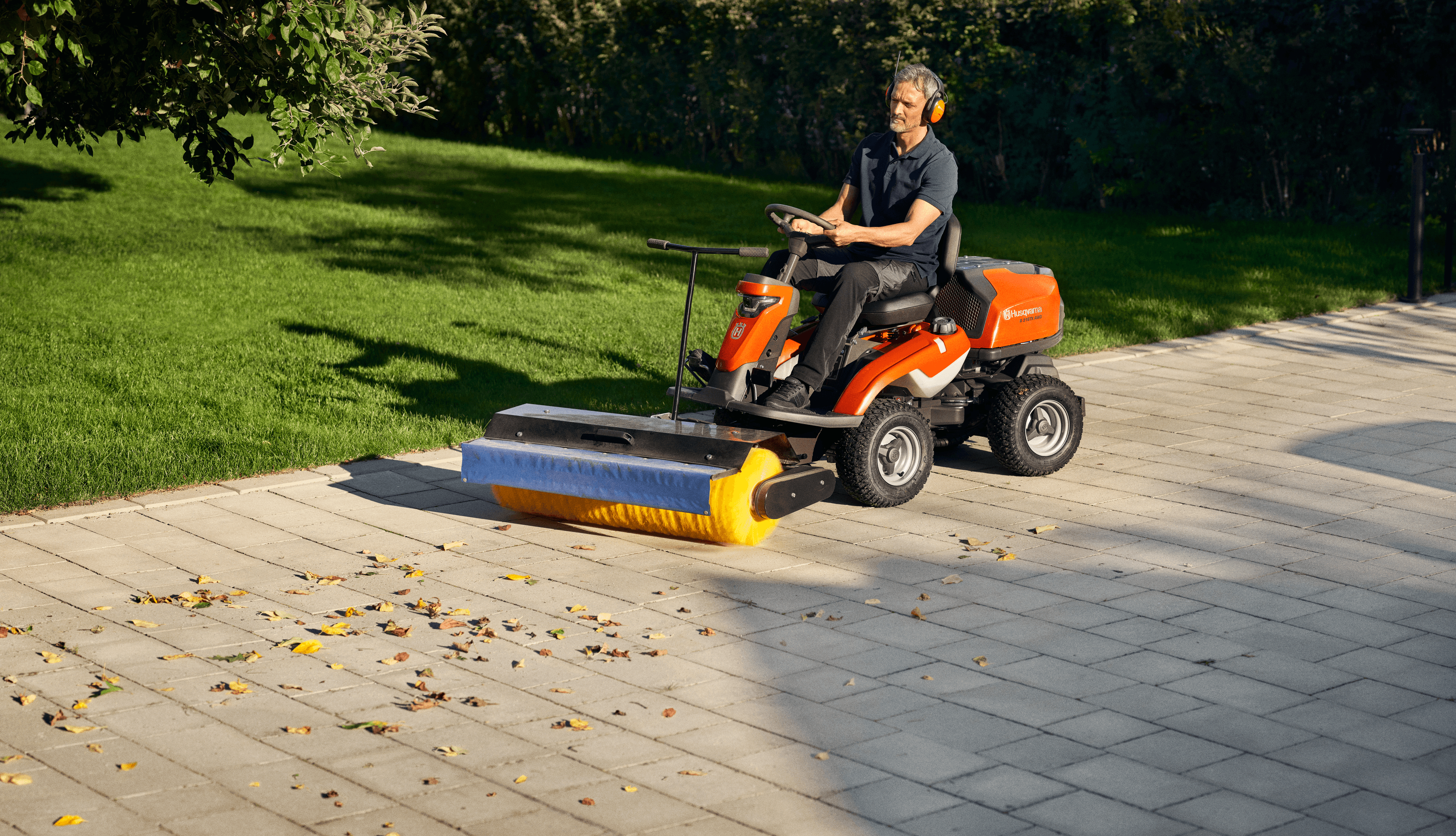

Attachments for versatile usage
Attachments for versatile year-round usage

Combi cutting deck
Combi cutting deck

Automatic blade engagement
The blades are engaged automatically, when you lower the cutting deck.

Pedal-Operated Transmission
Speed and direction are controlled by pedals, letting you keep both hands on the steering wheel

Easy-access cutting height lever
Easy-access cutting height lever

Transparent fuel tank
Easy fuel level check by transparent fuel tank

Engine behind driver
Engine behind driver for better overview

Storage compartment
Easy-access storage compartment

Bottle holder
Convenient bottle holder for refreshments.

Dual LED lights for improved visibility.
Dual LED lights for improved visibility.

External fuel cap
External fuel cap for easy refueling

Patented articulated steering
Min. clearance circle by articulated steering

Comfortable driver's position
Comfortable driver's position

Front-mounted cutting deck
Front-mounted deck for optimum accessibility

Pivoting support wheels
Pivoting support wheels on the cutting deck

BioClip®
BioClip® (mulching) mode for frequently cut areas

Tilting hood
Tilting hood makes maintenance quick and easy

Service position
Service position for easy deck maintenance

12V socket outlet
12V socket outlet for electric equipment

Easy-access controls
Easy-access controls for user comfort

Husqvarna Connect
With the smart Husqvarna Connect app, you’ll have easy access to tips, manuals and spare part recommendations. The app also provides additional information such as runtime and charging status as well as maintenance and service needs. <i>*not yet available in all countries</i>
Specifications | Art No: 970542710 |
---|---|
Output shaft power | 9.6 kW |
Weight (excl. cutting equipment) | 240 kg |
Cylinder displacement | 603 cm³ |
Weight (complete product w/o side packed articles) | 240 kg |
Fuel tank volume | 12 l |
Sound pressure level at operators ear | 86 dB(A) |
Base machine, height | 118.1 cm |
Base machine, length | 204.4 cm |
Base machine, width | 88.3 cm |
Battery capacity | 24 Ah |
Battery pack weight | 7.2 kg |
Battery voltage | 12 V |
Cutting height max | 75 mm |
Cutting height min | 25 mm |
Cutting width, max | 112 cm |
Cutting width, min | 94 cm |
Fuel consumption | 349 g/kWh |
Fuel tank volume | 3.17 gal (US) |
Gross weight towed | 125 kg |
Ground clearance | 120 mm |
Net power at preset rpm | 2900 rpm |
Net power at preset rpm Energy | 9.6 kW |
Sound power level, guaranteed (LWA) | 98 dB(A) |
Sound power level, measured | 97 dB(A) |
Speed forward max | 9 km/h |
Speed reverse max | 8.0 km/h |
Uncut circle | 30 cm |
Vibration level seat | 0.7 m/s² |
Vibration level steering wheel | 2.5 m/s² |
Wheelbase | 88.7 cm |
